Products center
In order to make "Yingke" famous in the world, all employees of Ningbo Yingke Industrial Automation Co., Ltd. will focus on their own work, adhere to the corporate spirit of "dedicating their lives to the automation industry", make their own contributions to the progress and innovation of China's automation industry, and create a more brilliant tomorrow!
-

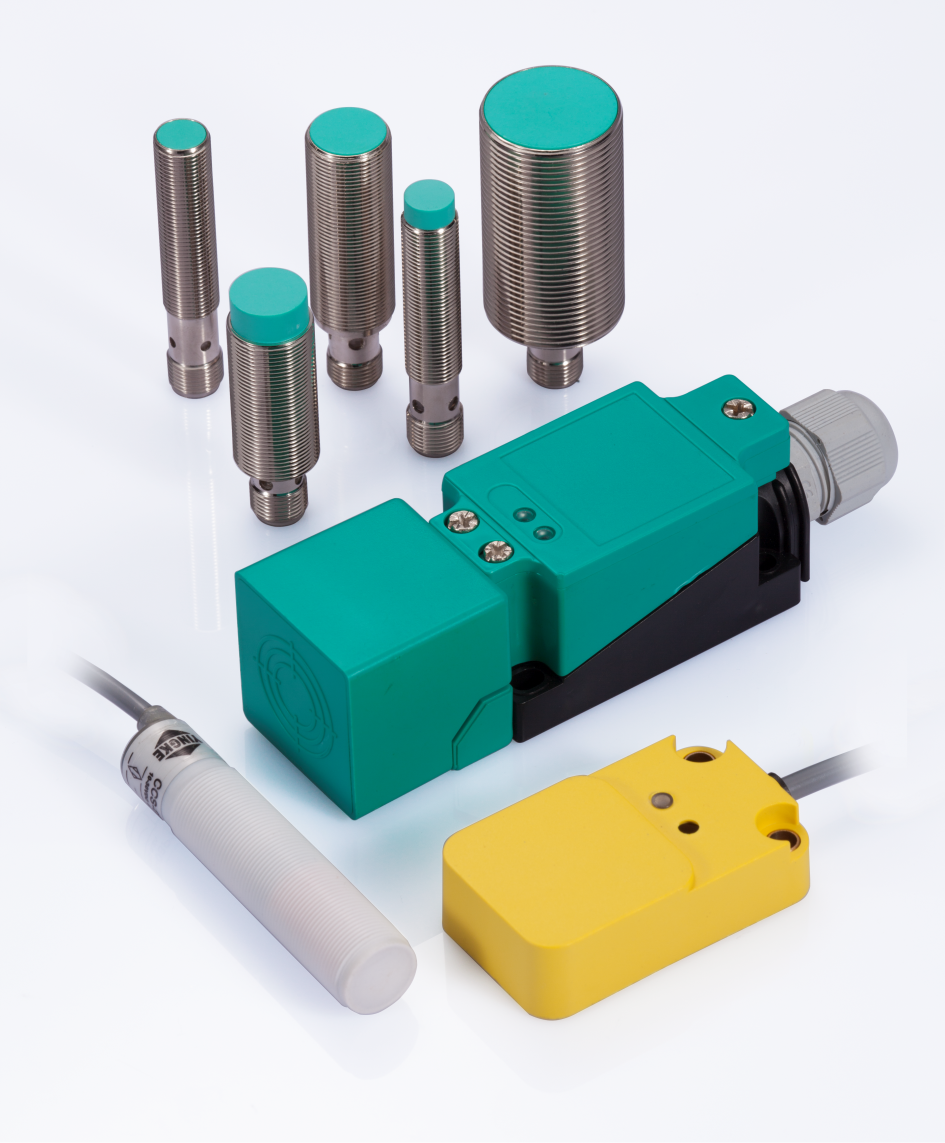

Inductive sensor
Inductive sensors can detect metal objects and are mainly composed of three parts: 1 Oscillator 2 Trigger circuit 3 Output circuit.
After the power is turned on, the oscillator begins to oscillate and generate a specific current. The electromagnetic field generated by the oscillating coil is concentrated on the sensing surface of the sensor. When a target object made of conductive material approaches the sensing surface, eddy currents are generated inside the target object, consuming the energy of the oscillator and causing attenuation of the oscillating circuit. The amplitude of the oscillator decreases, and once it reaches a certain amplitude, the subsequent trigger circuit activates, generating a switch output. The characteristics of the inductive sensors produced by our company are:
- The variety is complete and can reach thousands.
- Excellent quality, designed and produced according to European standards.
- The sensing range is from 0.6-150mm.
- The protection function is complete, and in special circumstances, it will not cause damage to the sensor.
- The highest protection level can reach IP69K.
- Sensors can be customized according to the user's usage requirements and environment.
-
Capacitive sensorCapacitive sensors can detect both metallic and non-metallic objects. Detecting metallic objects can obtain the maximum movement distance, while detecting non-metallic objects depends on the dielectric constant of the material. The larger the dielectric constant of the material, the greater the movement distance that can be obtained.Most capacitive sensors have a spiral potentiometer that can be used to adjust the switch action distance.
-

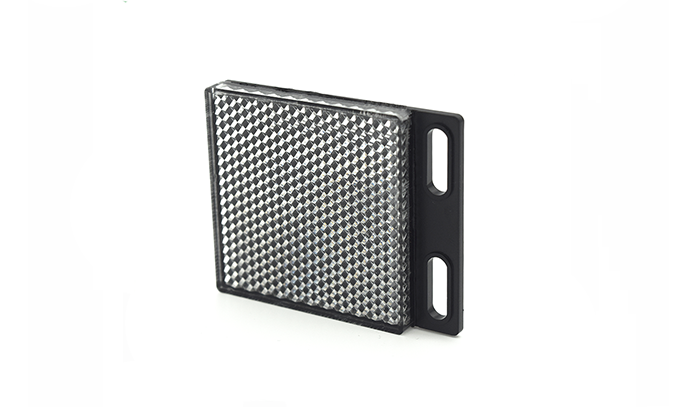

Photoelectric sensor光電式傳感器檢測的原理是投光器發射的束光, 被物體阻斷或部分反射。 受光器據此作出判斷和反應。接收到光線時, 光電傳感器有輸出,被稱為 “ 亮通"當光線被阻斷或低千一定數值時, 光電傳感器有輸出,被稱為 “ 暗通” 。光電傳感器動作的光強值是由許多因素決定的, 包括目標的反射能力及光電傳感器的靈敏度。所有光電傳感器都采用調制光, 以便有效地消除環境光的影響。
-

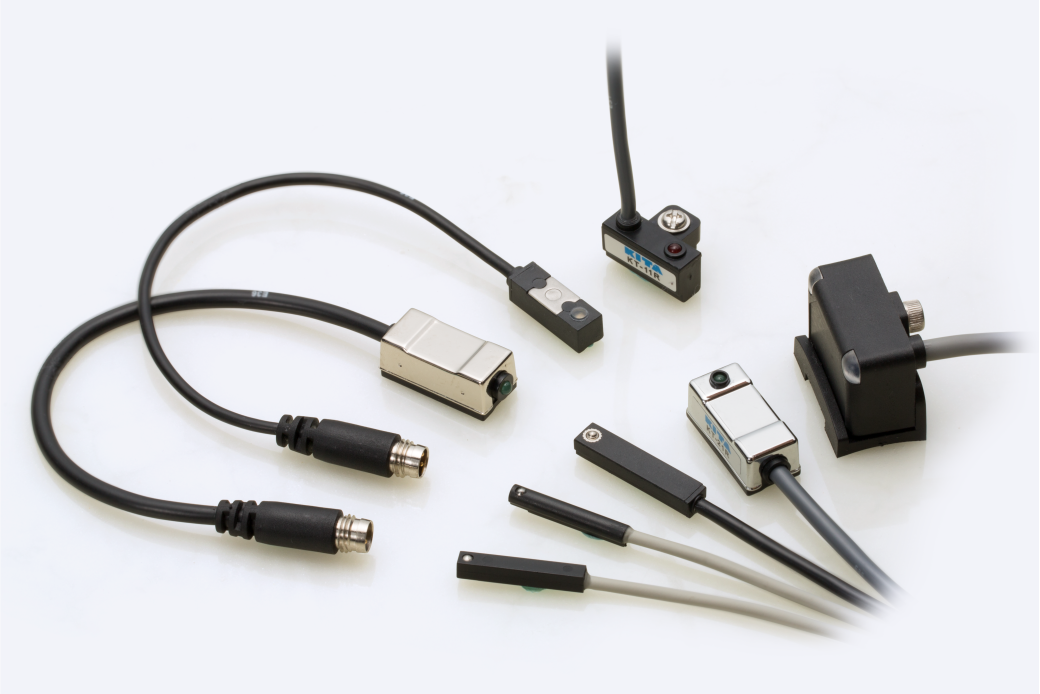

Magnetic Sensor
Magnetic sensors are used to detect magnets (electromagnets and permanent magnets) or ferromagnetic targets. Permanent magnets are widely used in the field of automation because they do not require power supply.
-
Ultrasonic sensor
-
Pressure sensor
Comprehensive solution for industrial automation - one-stop service.
-

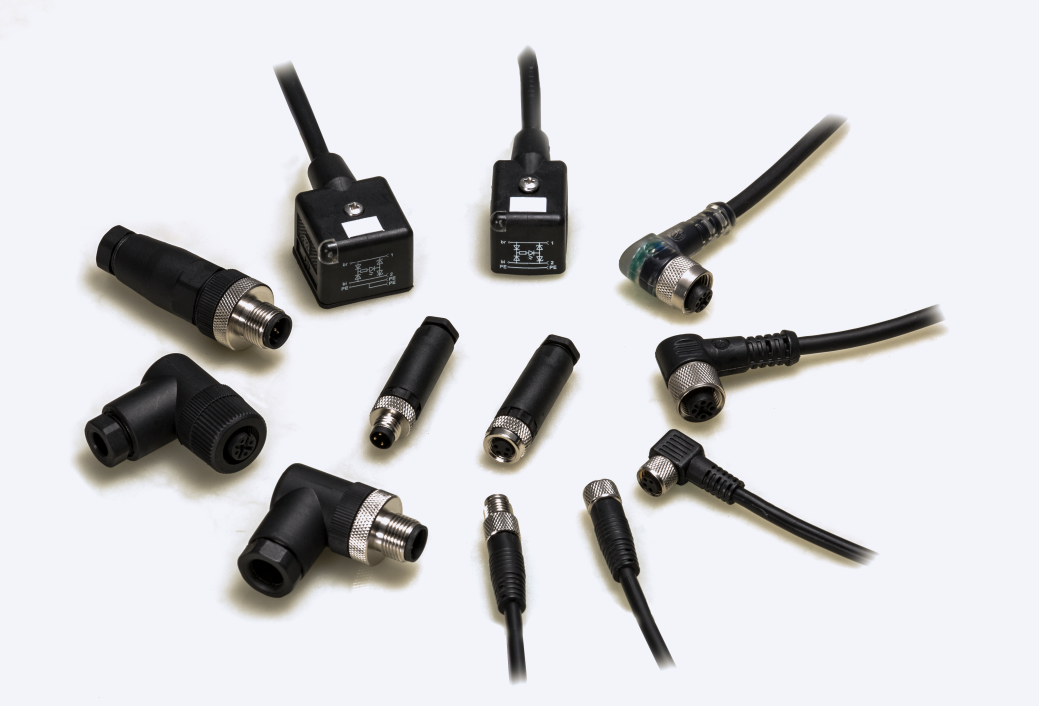

Connector
-

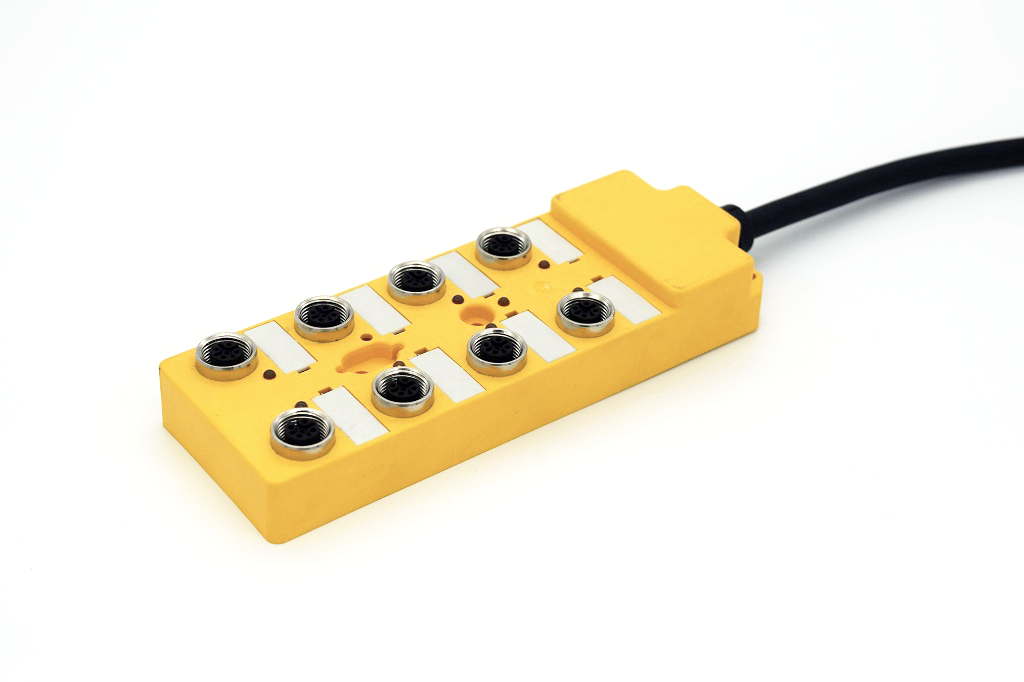

Junction box
The sensor fieldbus uses a junction box that is plug and play. Easy and fast assembly, less prone to errors.
-

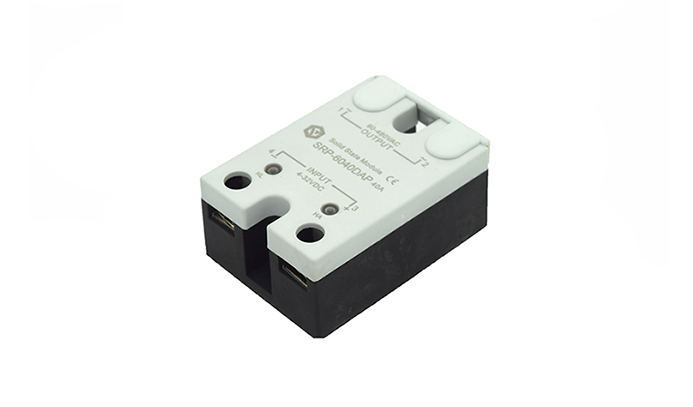

Solid state relay
Solid state relays use SRC technology for AC output, and control the on/off of AC output through DC control voltage signals. Mainly used for inductive or resistive loads, such as electrical heating and motor drive.
-

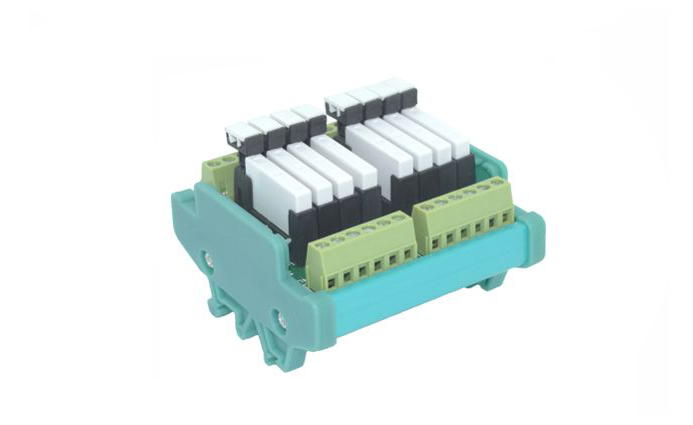

Power output moduleThe power output module is mainly used to drive various inductive, resistive, and capacitive loads. Use small voltage signals to drive high-power DC loads, such as amplifying PLC output signals to drive various solenoid valves. It is widely used in various industrial automation equipment.
-

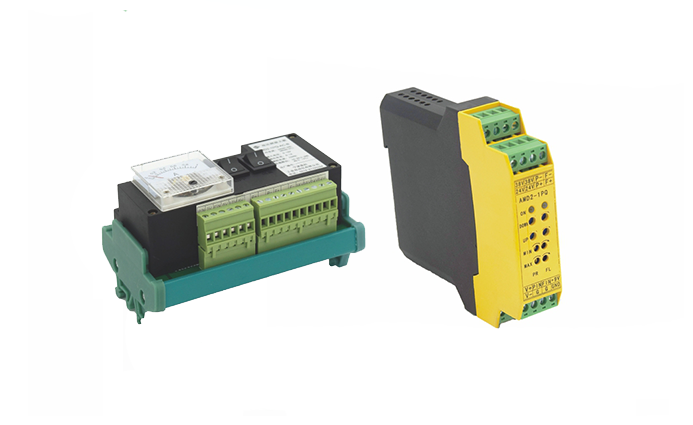

Hydraulic proportional amplifierHydraulic proportional amplifiers are used in hydraulic systems to provide the required DC current to various hydraulic proportional valves. The proportional amplifier can output current to the proportional valve in proportion to the input voltage control signal (0-10V) to change the pressure or flow rate of the hydraulic system.Hydraulic proportional mortgage seven is widely used in hydraulic equipment, such as rubber and plastic machinery, light industry machinery, die-casting machinery, metallurgical machinery, engineering machinery, port machinery, brick and tile machinery, and other hydraulic systems.
-

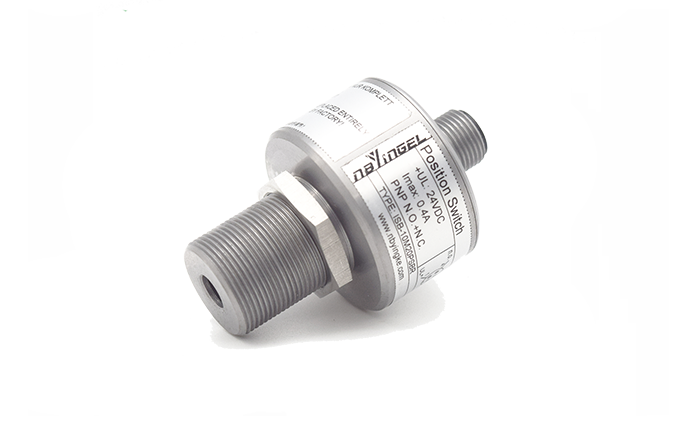

Hydraulic spool displacement sensor
The sensor used for hydraulic safety valves is an inductive sensor installed on the hydraulic valve to detect the status of the solenoid hydraulic valve spool, determine whether the spool is reset, and whether the valve is stuck. The sensor outputs an electrical signal to the controller. Inductive sensors for hydraulic safety valves are widely used in mechanical equipment, such as plastic injection molding machines, die-casting machinery, port machinery, steel industry and other industries.
-
Safety relay
Safety relays are used to monitor safety functions such as emergency stop buttons, safety doors, light curtains, and dual hand controls. Compliant with EN954-1 standard.
-

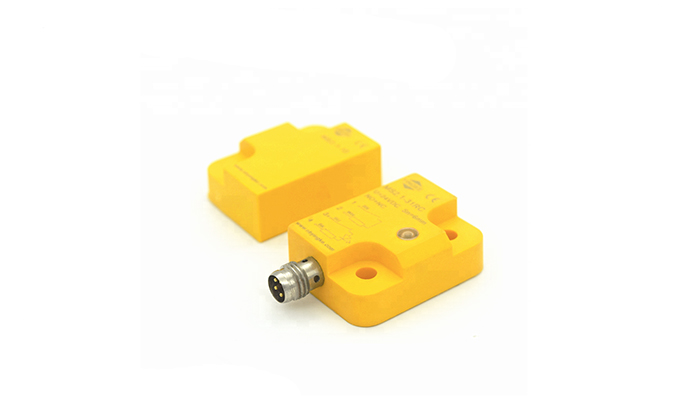

Magnetic safety switch
磁式安全傳感器是非接觸式安全開關,可用于移動式防護設備的位置監控(符合EN50957-5-3標準),或者用于一般位置監控。本產品應該與電子評估設備聯合使用。
-
Security grating
